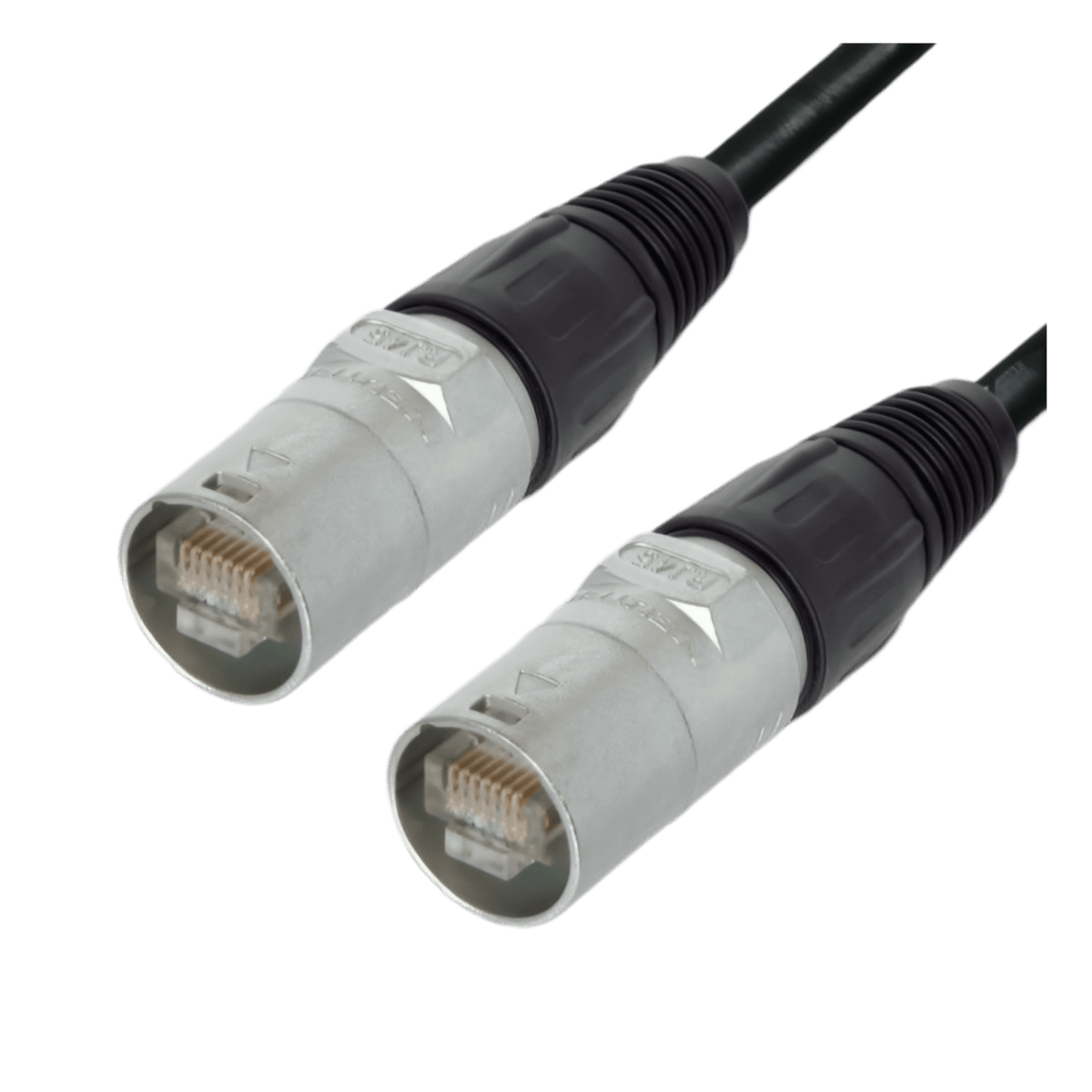

Black Van Damme Tourcat Cat 5E cable with a Neutrik etherCON connector at each end, RJ45 plugs visible inside

Van Damme Tourcat Cat 5E Screened Neutrik Ethercon to Ethercon

Availability:
Only 1 left in stock!

DPD UK Next Day when you order by 3pm, Monday to Friday.

Availability:
Only 2 left in stock!

DPD UK Next Day when you order by 3pm, Monday to Friday.

Availability:
Out of stock
VDC
£24.69 - £64.35
£24.69 excl. VAT
£29.63 inc. VAT
£24.69 - £64.35
£24.69 excl. VAT
£29.63 inc. VAT

Royal Mail Tracked 48 from £5.77 or DPD UK Next Day from £6.97 ex VAT. Free Royal Mail Tracked 48 on orders of £100 or more.
Product Features / Specifications

• Cable: Van Damme Tourcat Cat 5E flexible F/UTP, black
• Standards: Category 5E TIA/EIA-568-C-2, EN 50288-2-2, ISO/IEC 11801
• Conductors: 4 pairs, 7 x 0.16mm (26 AWG) stranded bare oxygen-free copper
• Screen: aluminium/polyester foil with tinned copper drain wire
• Overall diameter: 6.0mm
• Operating temperature: -40°C to +70°C
• Connectors: Neutrik etherCON to etherCON, screened RJ45s
• Recommended length: 53m for Gigabit; 75m maximum for 100Mbit
• Lengths: 1m, 3m, 20m

Van Damme Tourcat Cat 5E ethercon cable: screened F/UTP flexible Cat 5E terminated with Neutrik etherCON connectors and screened RJ45s at both ends, in 1m, 3m and 20m lengths. Use it for the data runs in a touring or venue system, such as console to stage box, switch to amp rack, and Ethernet-based digital audio and video links.

Tourcat is a stranded patch cable with the feel and flexibility of Van Damme microphone cable. The etherCON carrier houses a conventional RJ45 plug in a diecast shell that locks into etherCON sockets.

Van Damme rates Tourcat for Gigabit and 100Mbit to a recommended channel length of 53m, tested with a Fluke DTX1800 cable verifier; longer runs are possible but not guaranteed. VDC gives 75m as the maximum recommended length for 100Mbit.

Specifications

  • Cable: Van Damme Tourcat Cat 5E flexible F/UTP, black
  • Standards: Category 5E TIA/EIA-568-C-2, EN 50288-2-2, ISO/IEC 11801
  • Conductors: 4 pairs, 7 x 0.16mm (26 AWG) stranded bare oxygen-free copper
  • Screen: aluminium/polyester foil with tinned copper drain wire
  • Overall diameter: 6.0mm
  • Operating temperature: -40°C to +70°C
  • Connectors: Neutrik etherCON to etherCON, screened RJ45s
  • Recommended length: 53m for Gigabit; 75m maximum for 100Mbit
  • Lengths: 1m, 3m, 20m

Overall diameter: 6.0mm
