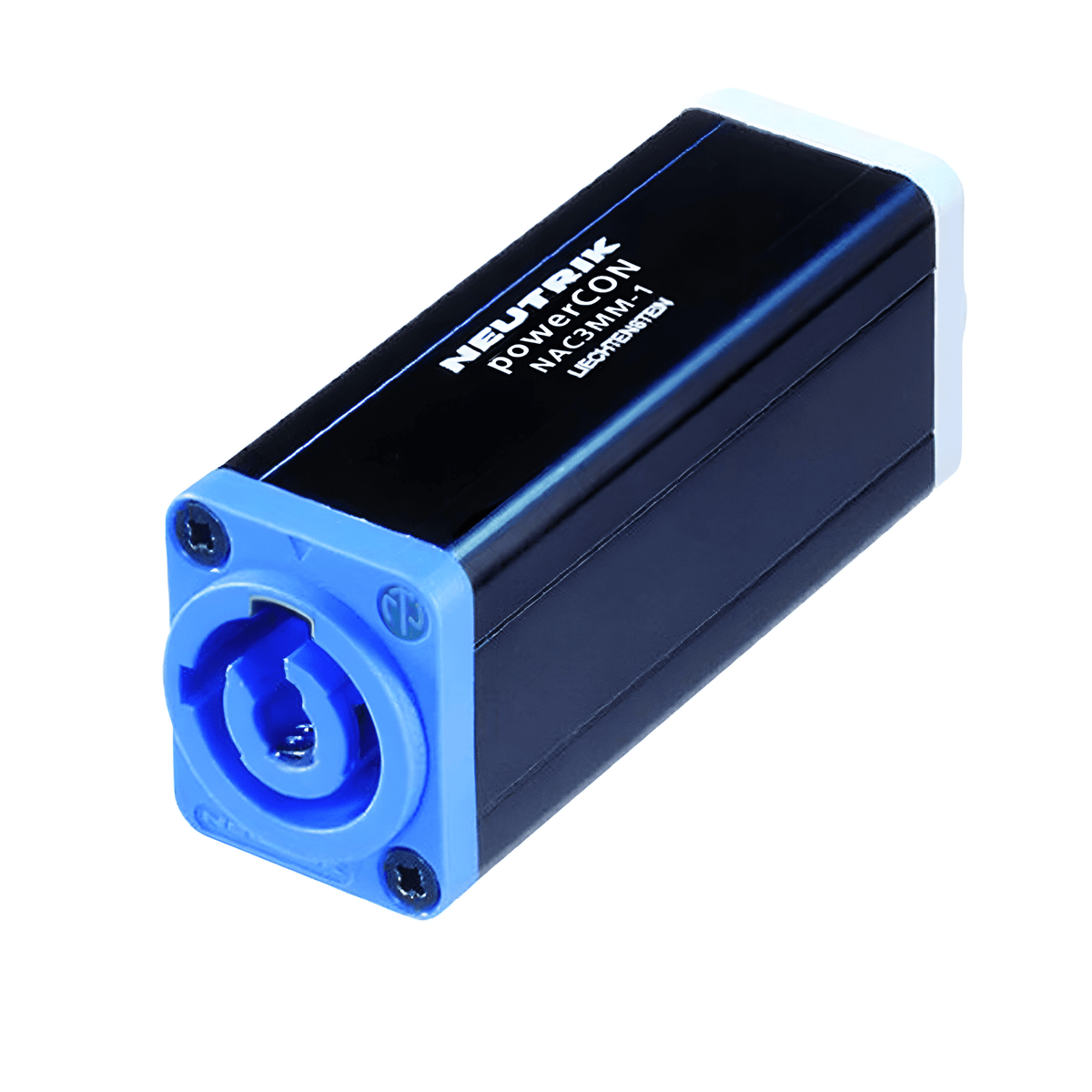

Neutrik NAC3MM-1 powerCON coupler, black body printed Neutrik powerCON NAC3MM-1, blue power-in receptacle facing forward

Neutrik powerCON Cable Coupler NAC3MM-1

Availability:
Only 3 left in stock!

DPD UK Next Day when you order by 3pm, Monday to Friday.

by Neutrik
£19.46 - £19.46
£19.46 excl. VAT
£23.35 inc. VAT
£19.46 - £19.46
£19.46 excl. VAT
£23.35 inc. VAT

Royal Mail Tracked 48 from £5.77 or DPD UK Next Day from £6.97 ex VAT. Free Royal Mail Tracked 48 on orders of £100 or more.
Model: Neutrik NAC3MM-1
Product Features / Specifications

• Model: Neutrik NAC3MM-1
• Rated voltage: 250V AC
• Rated current: 16A rms per contact
• Contact resistance: 3mΩ max
• Dielectric strength: 4kV DC
• Insulation resistance: over 0.1GΩ
• Contacts: bronze (CuNi1Si0.2), 2µm silver plated
• Shell: polyamide (PA 6.6, 30% glass reinforced)
• Locking: Quick Lock
• Lifetime: over 1,000 mating cycles
• Protection class: IP20 (mated)
• Flammability: UL 94 V-0
• Safety standard: EN/IEC 61984
• Temperature range: -30°C to +80°C

The Neutrik NAC3MM-1 is a powerCON cable coupler for extending powerCON mains cables. It houses a blue power-in receptacle and a grey power-out receptacle back to back, so a cable ending in a blue powerCON connector can be joined to a cable starting with a grey one, in the same way a device's powerCON in and out sockets link.

Neutrik keys power-in (blue) and power-out (grey) differently so they cannot be intermated, and each side locks with Neutrik's Quick Lock. powerCON is a locking 3-conductor AC connector with contacts for line, neutral and a pre-mating earth. Switch off before connecting or disconnecting: Neutrik states that its earlier powerCON cable connectors (NAC3FCA and NAC3FCB) have no breaking capacity and must not be connected or disconnected under load or live.

Connections

  • Blue side: powerCON power-in receptacle, for blue powerCON cable connectors
  • Grey side: powerCON power-out receptacle, for grey powerCON cable connectors

Specifications

  • Model: Neutrik NAC3MM-1
  • Rated voltage: 250V AC
  • Rated current: 16A rms per contact
  • Contact resistance: 3mΩ max
  • Dielectric strength: 4kV DC
  • Insulation resistance: over 0.1GΩ
  • Contacts: bronze (CuNi1Si0.2), 2µm silver plated
  • Shell: polyamide (PA 6.6, 30% glass reinforced)
  • Locking: Quick Lock
  • Lifetime: over 1,000 mating cycles
  • Protection class: IP20 (mated)
  • Flammability: UL 94 V-0
  • Safety standard: EN/IEC 61984
  • Temperature range: -30°C to +80°C
