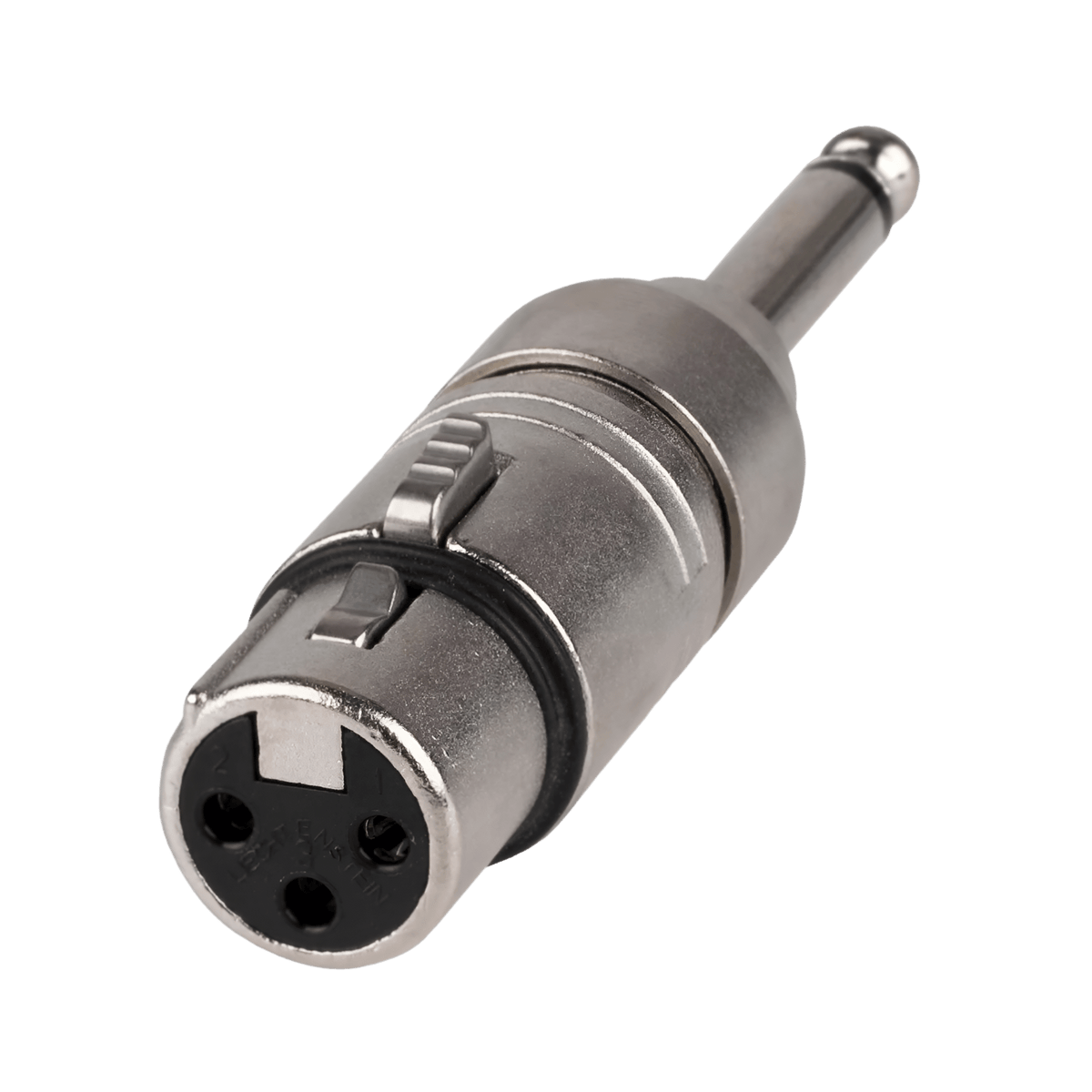

Neutrik NA2FP adaptor, nickel diecast body with 3-pin female XLR socket and latch at one end, mono jack plug at the other

Neutrik NA2FP Female XLR > Mono Jack Plug

Availability:
Only 2 left in stock!

DPD UK Next Day when you order by 3pm, Monday to Friday.

Neutrik
£12.06 - £12.06
£12.06 excl. VAT
£14.47 inc. VAT
£12.06 - £12.06
£12.06 excl. VAT
£14.47 inc. VAT

Royal Mail Tracked 48 from £5.77 or DPD UK Next Day from £6.97 ex VAT. Free Royal Mail Tracked 48 on orders of £100 or more.
Model: Neutrik NA2FP
Product Features / Specifications

• Model: Neutrik NA2FP
• Type: pre-wired adaptor
• Shell: zinc diecast, Cu/Ni plated
• Contact plating: 2µm silver over 2µm nickel
• Temperature range: -20°C to +65°C

The Neutrik NA2FP is a pre-wired adaptor from a 3-pole female XLR to a mono 1/4-inch (6.35mm) jack plug. It lets a male XLR, such as the end of a mic cable or an XLR output, plug straight into a 1/4-inch jack input without an adaptor lead.

Wiring follows IEC 268-12: pin 2 carries the signal and pins 1 and 3 are both connected to ground, with the jack using tip and sleeve contacts. That makes the connection unbalanced, so it suits short runs into unbalanced inputs such as instrument amps and pedals. The female XLR latches onto the mating connector, and the compact diecast shell is based on Neutrik's X Series.

Connections

  • XLR end: 3-pole female, latch lock
  • Jack end: mono 1/4-inch plug (tip, sleeve)
  • Wiring: IEC 268-12; pin 2 signal, pins 1 and 3 to ground

Specifications

  • Model: Neutrik NA2FP
  • Type: pre-wired adaptor
  • Shell: zinc diecast, Cu/Ni plated
  • Contact plating: 2µm silver over 2µm nickel
  • Temperature range: -20°C to +65°C
