Van Damme XLR Mic Cables

Van Damme describes XKE as flexible, durable and quiet in use, with good handling characteristics. It's used in touring rigs, recording and film studios, music shops and colleges. The 6.35mm jacket is a flexible PVC/neoprene composite over a close-lap spiral oxygen-free copper screen, and the two cores are colour coded red and blue.

As a rough guide, 3m suits mics near a stage box or sub-snake, 5m covers most runs across a stage, and 10m reaches from the back of the stage or out to a mic across the room.

Connectors

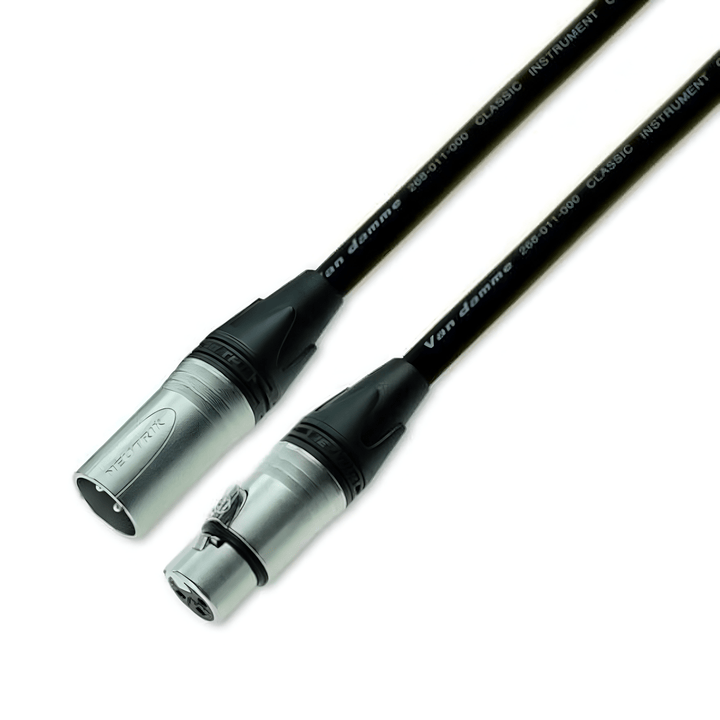

• Neutrik NC3FXX 3-pin female XLR to Neutrik NC3MXX 3-pin male XLR
• Terminated with 2% silver solder

Cable specification (Van Damme)

• Cable: Tour Grade Classic XKE microphone cable
• Overall diameter: 6.35mm
• Conductors: 2 x 0.22mm² (24AWG), each 7 silver-plated and 21 bare ultra-pure oxygen-free copper strands
• Insulation: cross-linked polyethylene (XLPE), red/blue
• Screen: 80 x 0.10mm close-lap spiral oxygen-free copper
• Jacket: flexible PVC/neoprene composite
• Capacitance: 46pF/m core to core, 105pF/m core to screen
• Conductor resistance: under 85 ohm/km
• Bend radius: 10 x overall diameter
• Operating temperature: -20°C to +70°C

Lengths (VDC part numbers)

• 3m: 101-065-001
• 5m: 101-066-001
• 10m: 101-067-001
