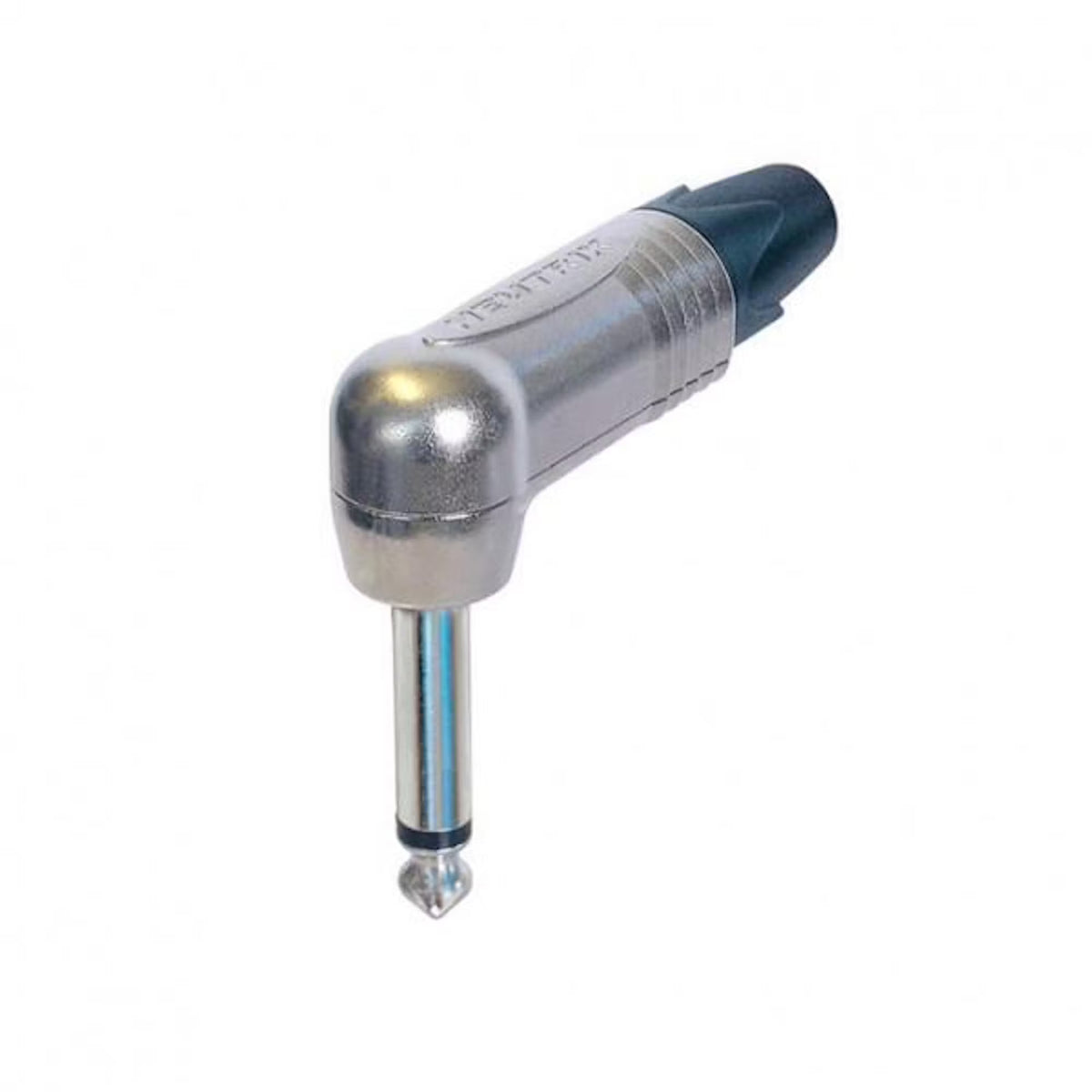

Neutrik NP2RX right-angle 6.35mm mono jack plug with nickel shell and chuck-type strain relief

Neutrik R/angle Mono Jack Plug

Availability:
5 in stock

DPD UK Next Day when you order by 3pm, Monday to Friday.

Neutrik
£4.20 - £4.20
£4.20 excl. VAT
£5.04 inc. VAT
£4.20 - £4.20
£4.20 excl. VAT
£5.04 inc. VAT

Royal Mail Tracked 48 from £5.77 or DPD UK Next Day from £6.97 ex VAT. Free Royal Mail Tracked 48 on orders of £100 or more.
Model: Neutrik NP2RX
Product Features / Specifications

• Model: Neutrik NP2RX
• Type: 6.35mm (1/4-inch) right-angle phone plug, 2-pole (mono)
• Shell: zinc diecast, nickel plated
• Contacts: brass, nickel plated, solder termination
• Cable OD: 4mm to 7mm
• Wire size: up to 1mm² (18 AWG)
• Lifetime: over 1,000 mating cycles
• Temperature range: -20°C to +65°C
• Standard: IEC 60603-11 / EIA RS-453

The Neutrik NP2RX is a right-angle 6.35mm (1/4-inch) mono jack plug for making up and repairing guitar leads, patch cables and amplifier cables where a straight plug would stick out too far, such as on pedalboards and on amp or rack panels close to a wall.

It is a 2-pole (TS) plug in Neutrik's X series, with an all-metal zinc diecast housing that replaces the plastic cover of the older NP*RCS, a precision-machined one-piece tip contact with no rivets, and Neutrik's chuck-type strain relief, which grips cable from 4mm to 7mm outside diameter. The contacts are solder type and take wire up to 1mm² (18 AWG).

Specifications

  • Model: Neutrik NP2RX
  • Type: 6.35mm (1/4-inch) right-angle phone plug, 2-pole (mono)
  • Shell: zinc diecast, nickel plated
  • Contacts: brass, nickel plated, solder termination
  • Cable OD: 4mm to 7mm
  • Wire size: up to 1mm² (18 AWG)
  • Lifetime: over 1,000 mating cycles
  • Temperature range: -20°C to +65°C
  • Standard: IEC 60603-11 / EIA RS-453
