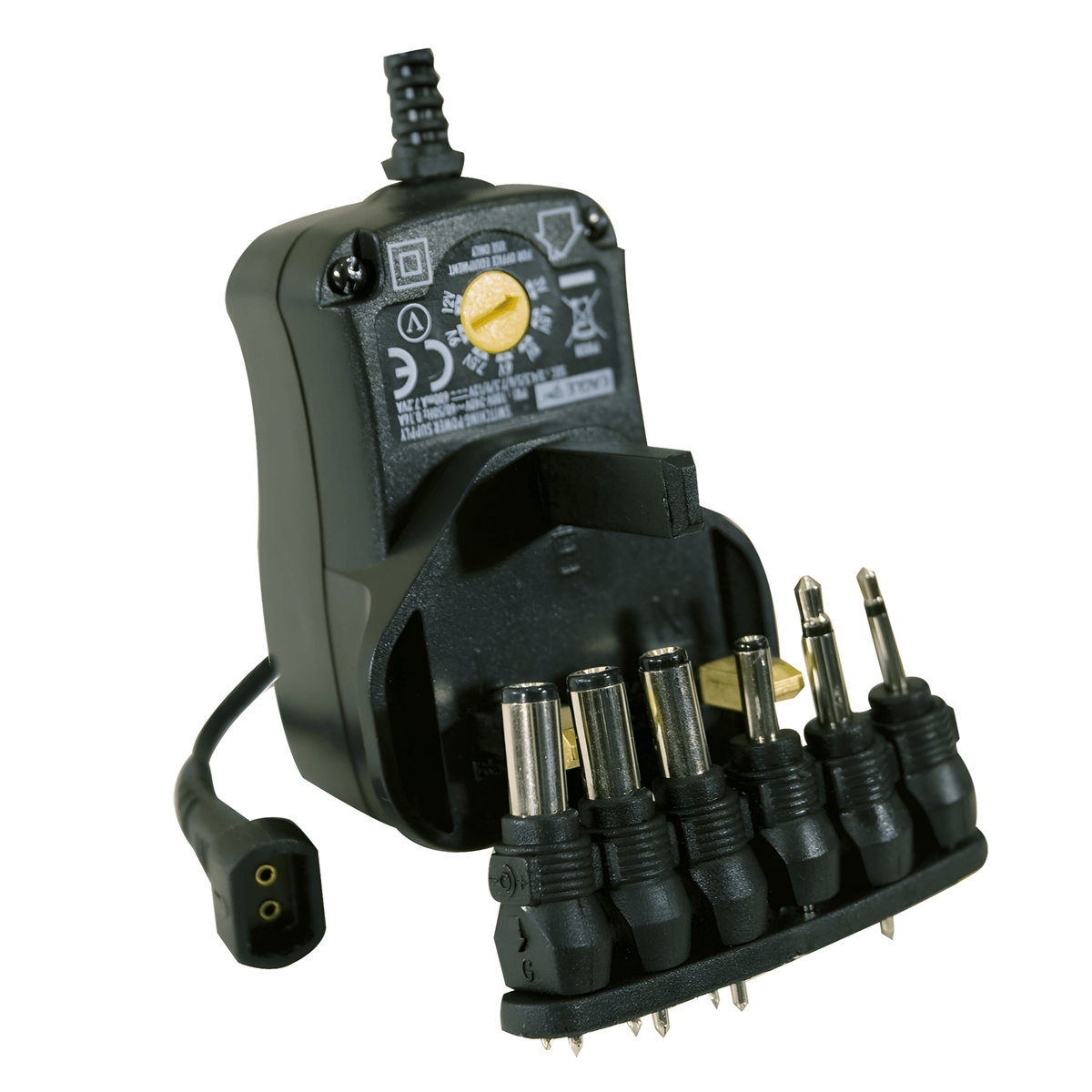

Black plug-in variable voltage power supply with gold selector dial, DC lead and six interchangeable barrel and jack tips

Variable Voltage Regulated Power Supply 3–12V DC 1000mA (P003C)

Availability:
Only 3 left in stock!

DPD UK Next Day when you order by 3pm, Monday to Friday.

by Electrovision
£12.24 - £12.24
£12.24 excl. VAT
£14.69 inc. VAT
£12.24 - £12.24
£12.24 excl. VAT
£14.69 inc. VAT

Royal Mail Tracked 48 from £5.77 or DPD UK Next Day from £6.97 ex VAT. Free Royal Mail Tracked 48 on orders of £100 or more.
Model: P003C
Product Features / Specifications

• Model: P003C
• Output voltages: 3, 4.5, 5, 6, 7.5, 9 and 12V DC (switchable)
• Output current: 1000mA continuous
• Type: regulated switch mode, IC-regulated DC output
• Polarity: selectable
• Protection: short-circuit protection and automatic overload cut-off
• Indicator: LED
• Input: 230V AC, 50Hz, UK plug
• Output connectors: interchangeable DC adaptor plugs (barrel and jack types)
• Dimensions: 75 x 50 x 60mm
• Weight: 145g
• Colour: black

A variable voltage power supply for small DC-powered devices: this regulated, switch-mode plug-in unit (model P003C) gives seven selectable outputs from 3V to 12V DC at up to 1000mA, with a UK mains plug and interchangeable DC adaptor plugs to suit the socket on the kit you are powering.

It is a useful spare for the workshop drawer or production office when a unit turns up without its own adaptor. Set the voltage on the selector dial, choose the polarity, fit the matching tip and the LED confirms the output is live. Before connecting anything, match the voltage, polarity and plug size to the device's own rating and check it draws no more than 1000mA.

Specifications

  • Model: P003C
  • Output voltages: 3, 4.5, 5, 6, 7.5, 9 and 12V DC (switchable)
  • Output current: 1000mA continuous
  • Type: regulated switch mode, IC-regulated DC output
  • Polarity: selectable
  • Protection: short-circuit protection and automatic overload cut-off
  • Indicator: LED
  • Input: 230V AC, 50Hz, UK plug
  • Output connectors: interchangeable DC adaptor plugs (barrel and jack types)
  • Dimensions: 75 x 50 x 60mm
  • Weight: 145g
  • Colour: black

Dimensions: 75 x 50 x 60mm
Weight: 145g
